DC Surge Protector JSP Series
DC Surge Protector JSP Series
JSP-DC series surge protector device is suitable for photovoltaic power station system. When the system has surge overvoltage due to lightningstrike or other reasons, the protector will immediately turn on in the nanosecond time to introduce the surge overvoltage into the earth.
Advantage
Ucpv can choose DC600V, 1000V, 1500V
Modular design, pluggable design,Compact volume;
Window indication;
Alarm remote signaling contacts;
High reliability;
Flame retardant material :V0 level;
Meet harsh environments:-40℃~ +70℃.

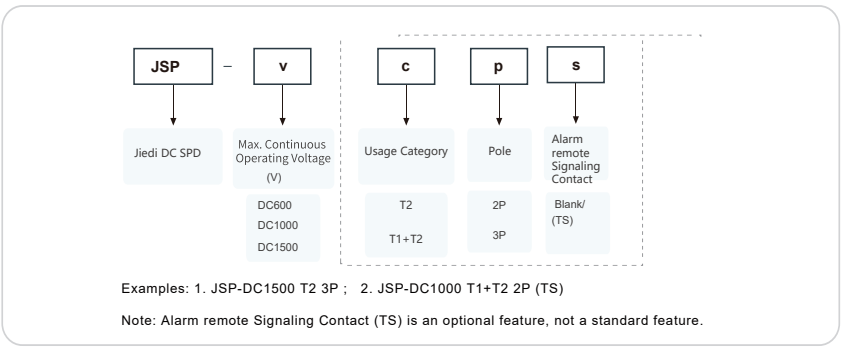

Select Code
Window indication
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating,
the fail-safe detach device can automatically detach from the power grid and give an indication signal.When the protector is normal,the display window will show green, and after failure, the display window will show red.
Alarm remote signaling contacts (TS)
The protector can be with remote signaling contacts. The remote signaling contacts have a set of normally open and normally closed contacts. When the protector is working normally, normally closed contacts are connected.
If one or more modules of the protector fail, the contact will change from normally open to normally closed. Normally open contacts will work and send trouble information.This is an optional feature, not a standard feature.

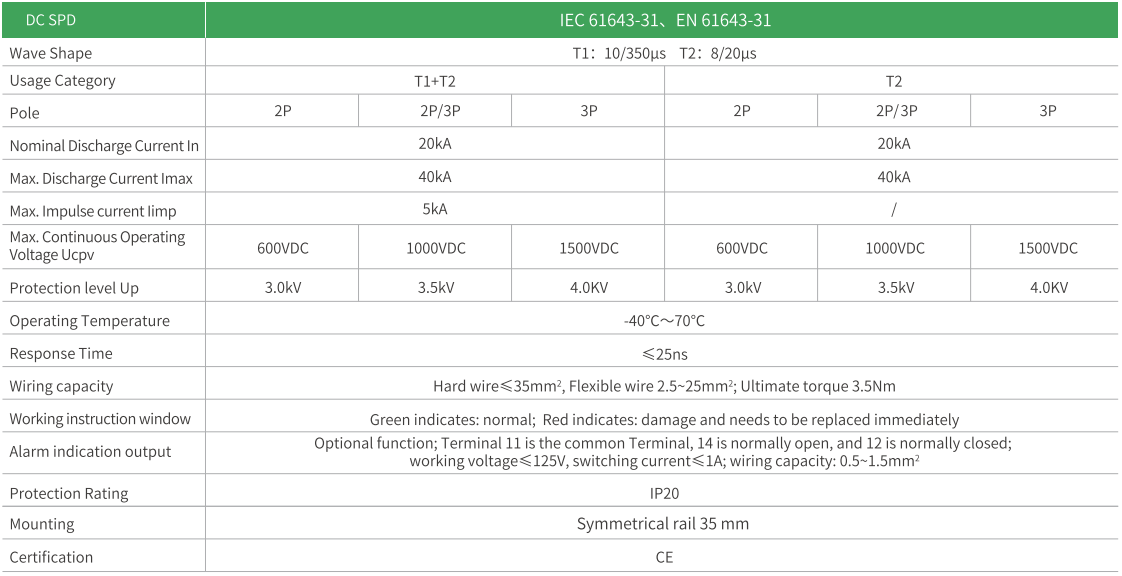

Technical data
Notes:
1. Class T1 SPD is mainly used in the main incoming pannel of the power distribution system; T2 type SPD is mainly used in distribution box of power distribution system;
2. T1 has an Iimp value, T2 has an In value, and T1+T2 has both Iimp and In values;

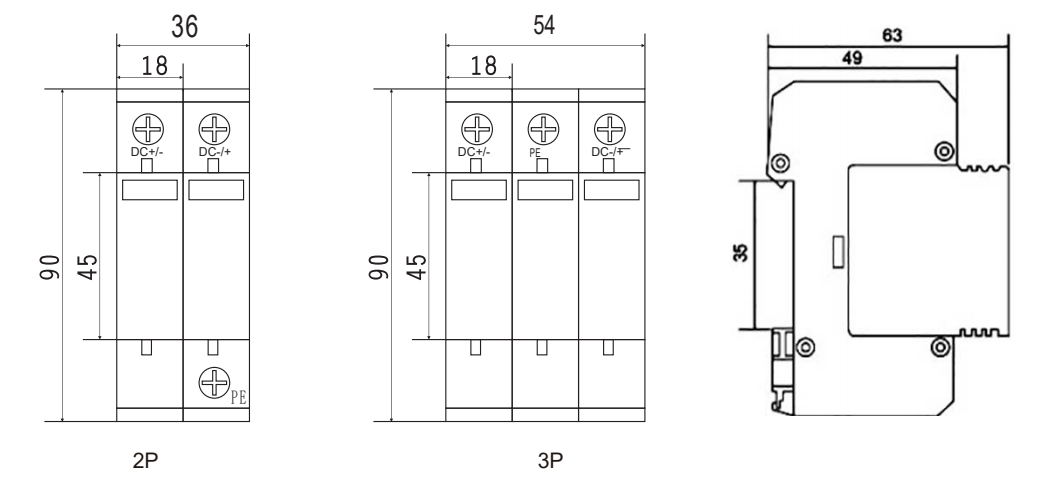

Dimensions
