JB1L-80B Residual Current Circuit Breaker

Advantage

  • Elegant appearance; cover and handle in arc shape make comfortable operation.

  • Contact position indicator.

  • High Rated breaking capacity 10kA.

  • High reliability.

  • Flame retardant material :V0 level.

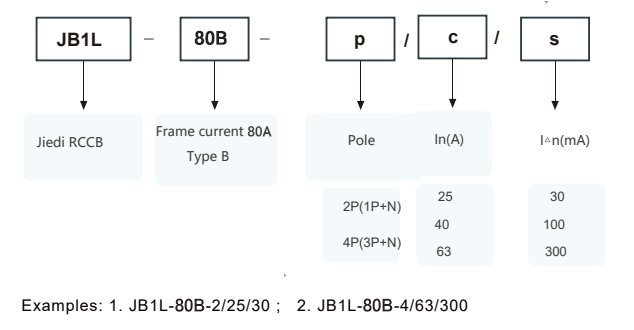

Select Code


General

• Protect people against indirect contacts and additional protection against direct contacts.

• Protect installations against fire hazard due to insulation faults.

Detectable wave form

B Class

Tirpping is ensured for sinusoidal AC residual currents pulsed DC residual currents ,alternating residual sinusoidal currents up to 1000Hz,pulsating direct residual currents and for smooth direct residual currents ,whether applied suddengly or increasing slowly.

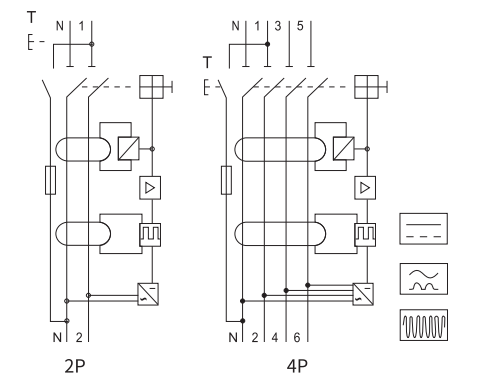

Circuit Diagram

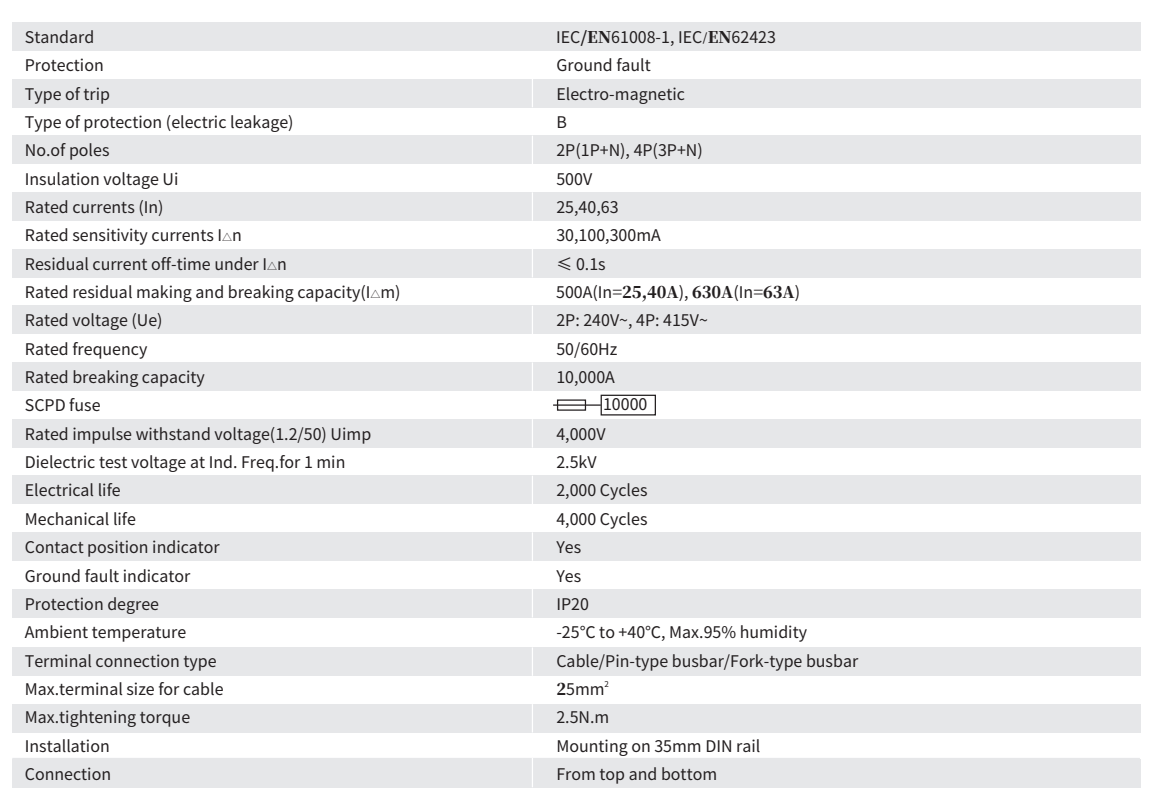

Technical data

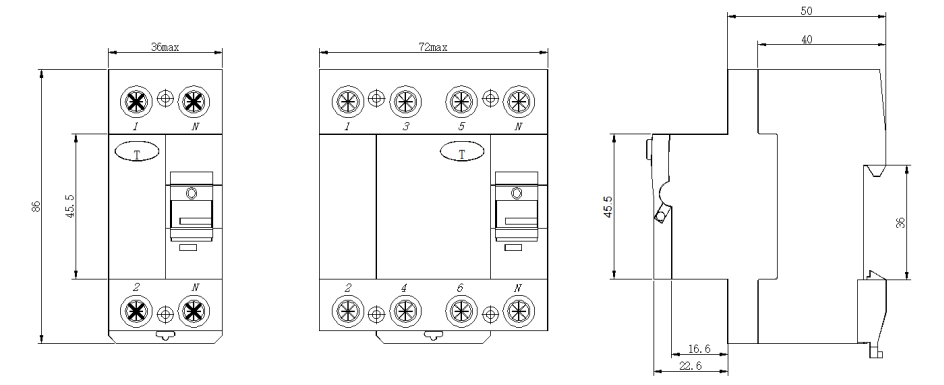

Dimensions
