Combiner Box

Overview

The JDCB series of solar DC combiner boxes are designed with a high-strength plastic shell, ensuring a robust and durable product. The boxes have an IP65 protection level, providing optimal protection against harsh ironmental conditions. These combiner boxes are suitable for both household and industrial photovoltaic power generation systems that operate at 500V,600V,1000V and 1500V.

The boxes can be equipped with a range of components such as DC circuit breakers, isolator switches, DC surge protectors, DC fuses, photovoltaic connectors, or waterproof joints.

The JDCB series offers lightning protection, short circuit protection, and ground protection, ensuring the safety of the system.

The JDCB series supports one or multiple outputs and can be easily installed on walls. All components, apart from the core compone nts, can be customized according to user requirements.

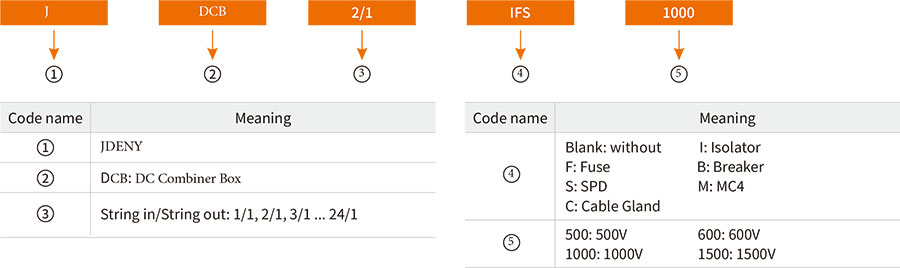

Model Preparation Meaning

1 String Input 1 String Output DC 600V

DC Isolator Switch Box

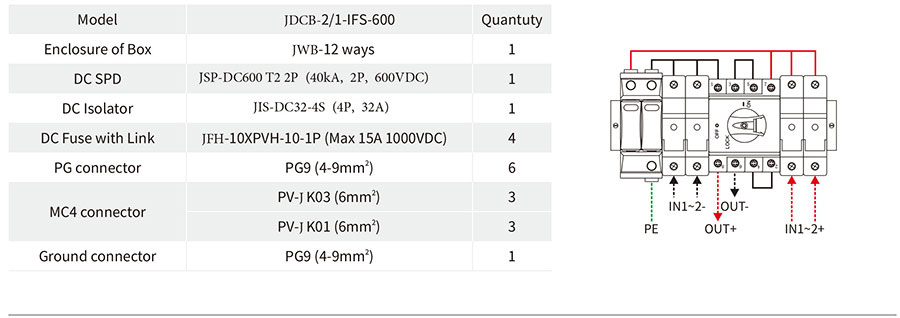

2 String Input 1 String Output DC 600V

DC Isolator Switch Box

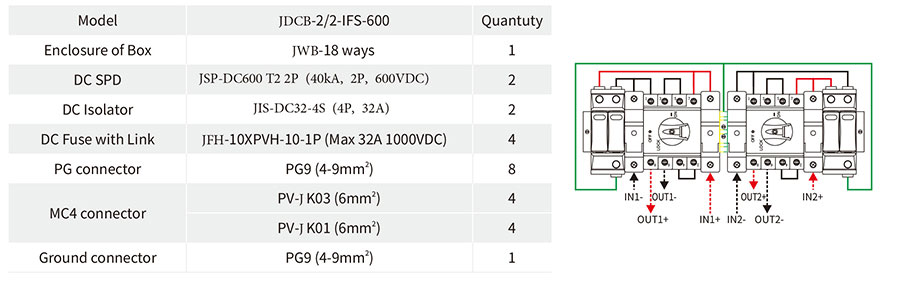

2 String Input 2 String Output DC 600V

DC Isolator Switch Box

1 String Input 1 String Output DC 1000V

DC Isolator Switch Box

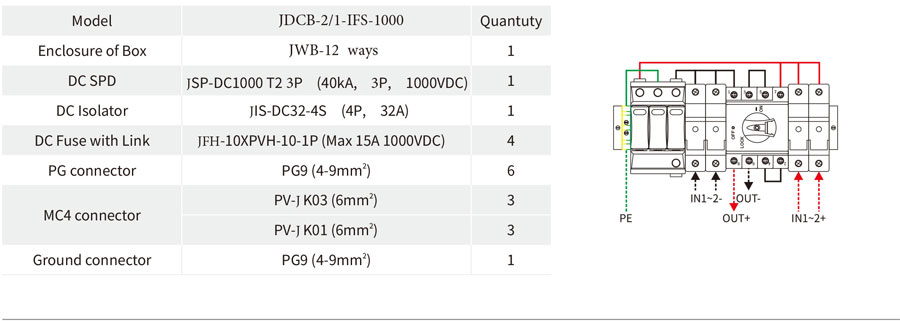

2 String Input 1 String Output DC 1000V

DC Isolator Switch Box

2 String Input 2 String Output DC 1000V

DC Isolator Switch Box

4 String Input 1 String Output DC 1000V

DC Isolator Switch Box

6 String Input 1 String Output DC 1000V

DC Isolator Switch Box

Note: If the order volume is large, the product can support customer customization.
